This course addresses the fundamentals of hand soldering surface mount and through-hole components including soldering materials, heat sources, and their use in creating acceptable surface mount solder connections. Also includes information on the care of the soldering iron/tips and solders joint acceptability criteria. Soldering exercises include step-by-step pictorials for the installation and soldering/touch-up of radial, axial, multi-leaded through-hole, chip, gull wing, and J-lead components. Instructor Guide (.pdf)
Student Guide (.pdf)
Power Point Visual Slideshow (.ppt)
Practical Skill Exams (.pdf)
Written Exams & Answer Sheets (.pdf)
Certificate Template (brandable .ppt)
This item download includes the following instructional training materials:
Our instructional Training Materials are presented to you in an electronic, downloadable format and allow unlimited printing or viewing for one facility with no annual fees or subscription charges - just a single, one time payment.

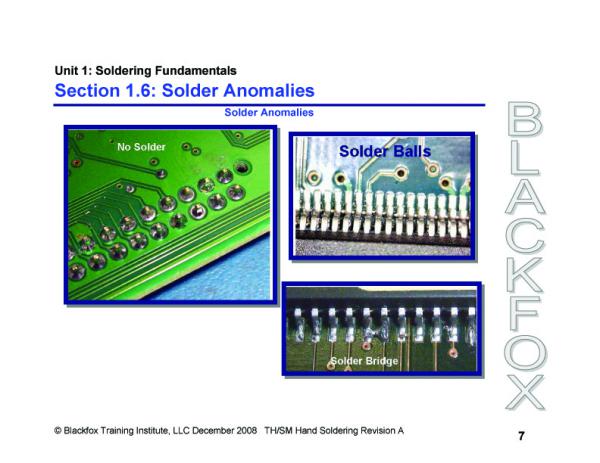

The image above is an actual screenshot of one page from the student manual associated with this course.
